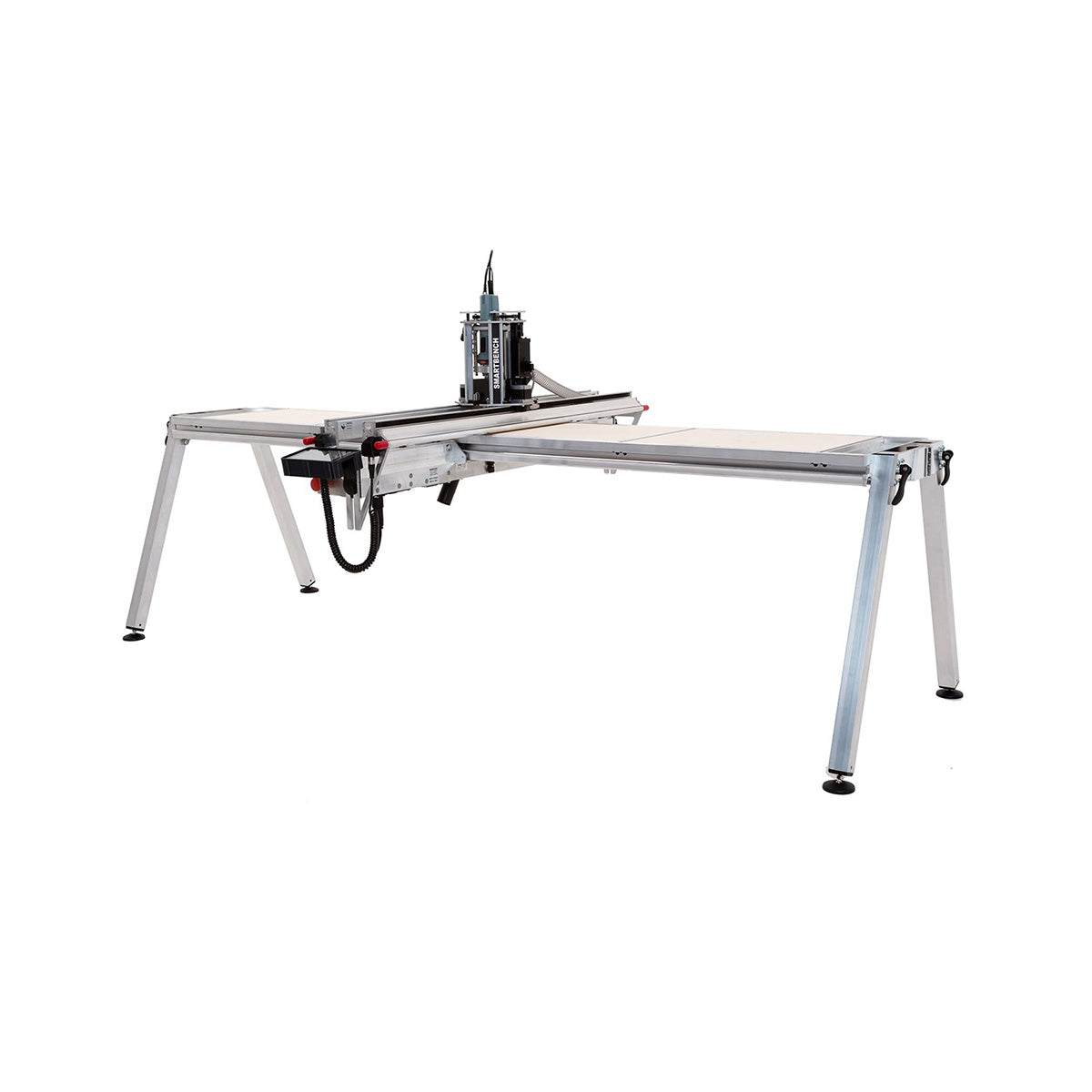

Yeti Tool SmartBench V1.2 PrecisionPro CNC Router
SKU: 20850
Large Format
Process 4-foot x 8-foot sheets
Now you too can work with industrial-sized sheet material, whatever your environment. With full reach over its entire working area, don’t be afraid to think big.
Easy to Use
New to CNC?
Get started in no time with SmartBenchs intuitive touchscreen console and ground-breaking cutting apps that allow you to design and cut without having to leave your workshop.
Space Friendly
Don't lose real estate
Don't want to use a large format CNC router all the time? No problems, pack down your SmartBench in just 3 minutes and store away when not in use.
Affordable
Easy to Justify
Our goal is to make CNC accessible to everyone, not just large businesses with deep pockets. You won’t find another large format CNC machine that comes close to our price range.
The Precision Pro, our flagship large format CNC Router is the one for anyone who requires a higher degree of performance and accuracy from a CNC.
With all the excellent features of the SmartBench Precision, the Precision Pro comes with real-time spindle load display giving you access to all the cutting information you need whilst running a job, an additional Lead screw to improve rigidity in the Z-Axis, and a laser X/Y datum which makes setting a job start point quick and incredibly accurate.

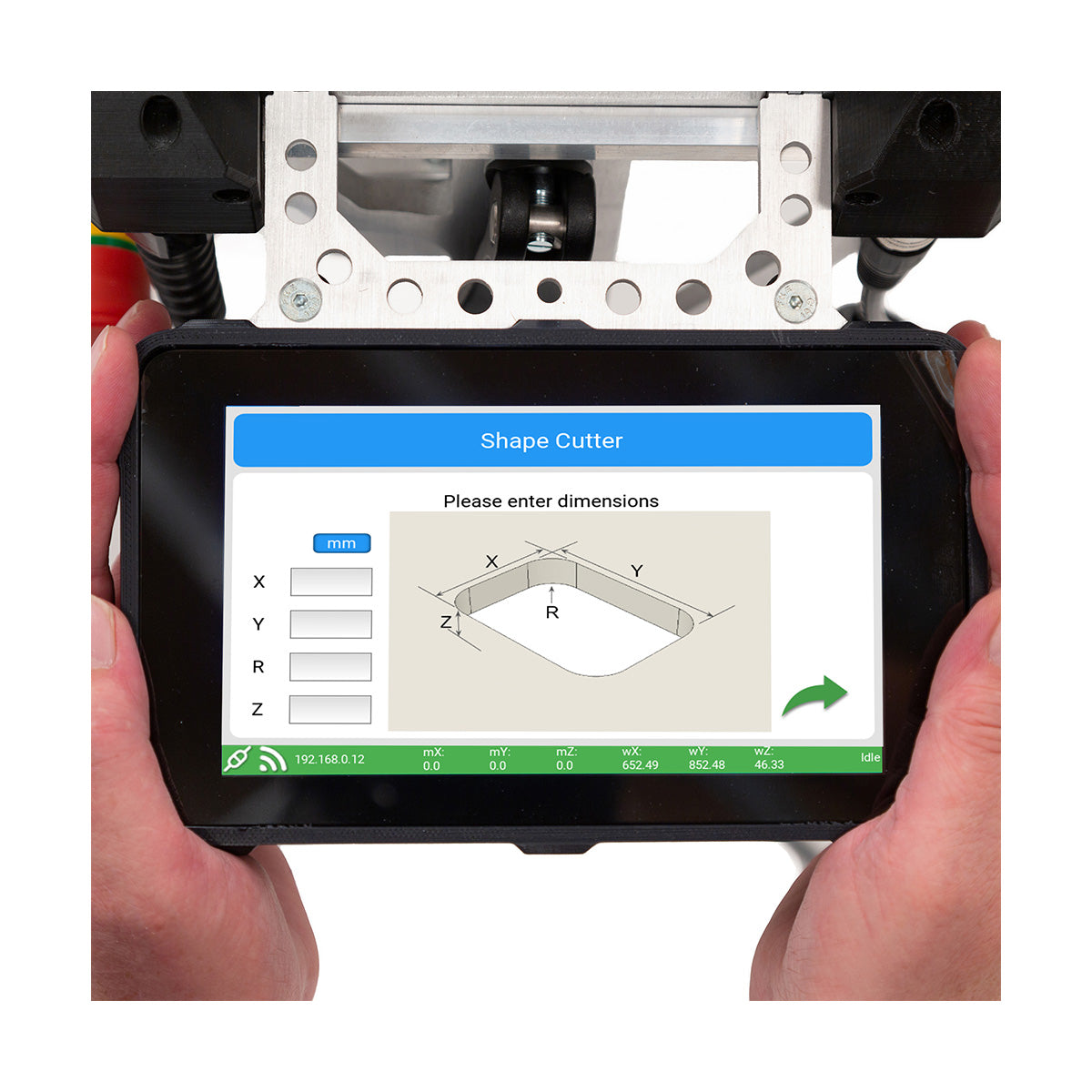

Combined with ShapeCutter our new console-based cutting app, you have an intuitive and powerful tool at your fingertips allowing you to start creating like never before.
For those new to CNC, ShapeCutter has a walk-through job wizard making getting started a simple process.
Features
SmartBench PrecisionPro - Model Specific Features

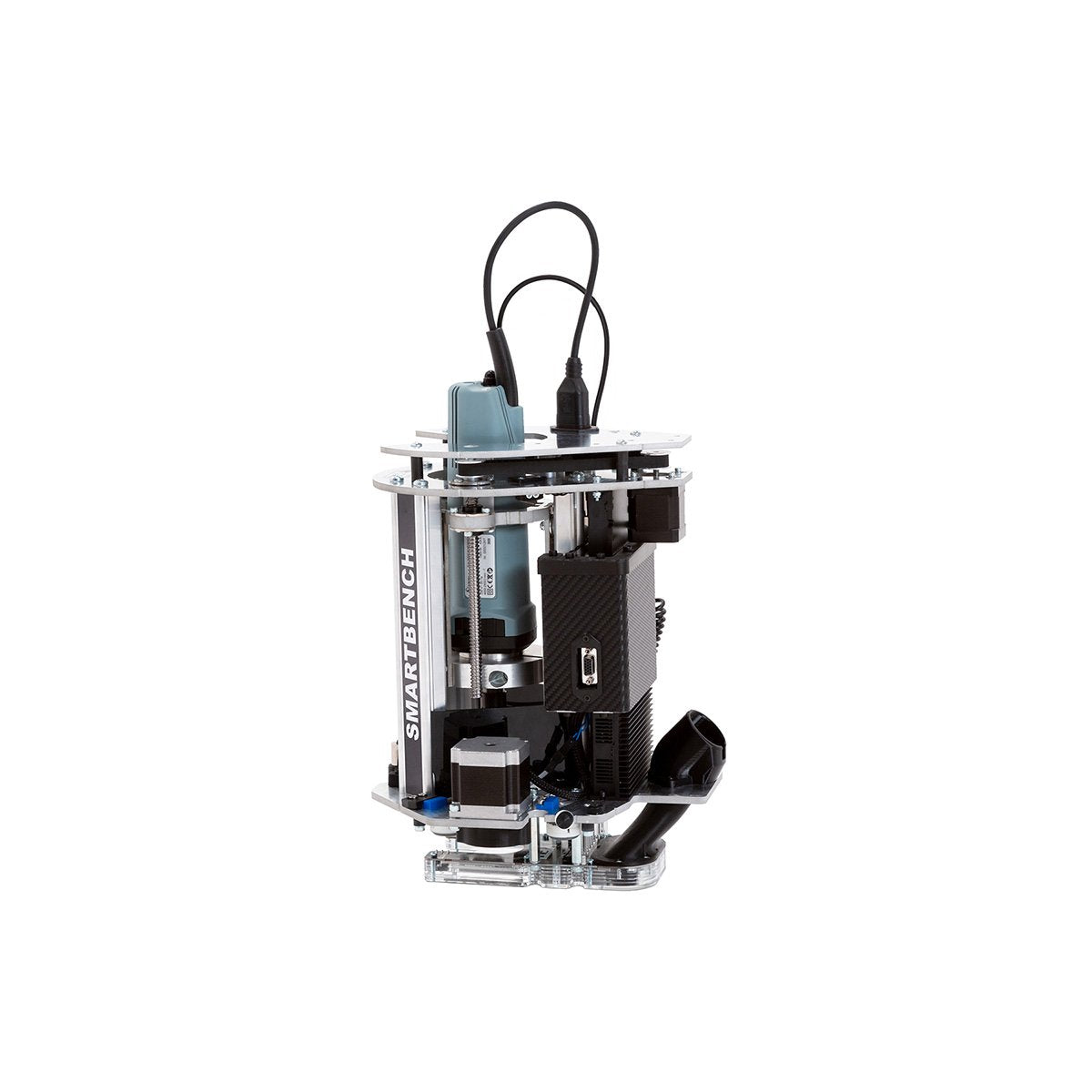

- Z-Head V2
- 120V 1000W Spindle
- Digital speed control
- Auto Tool Stop if spindle is in constant overload

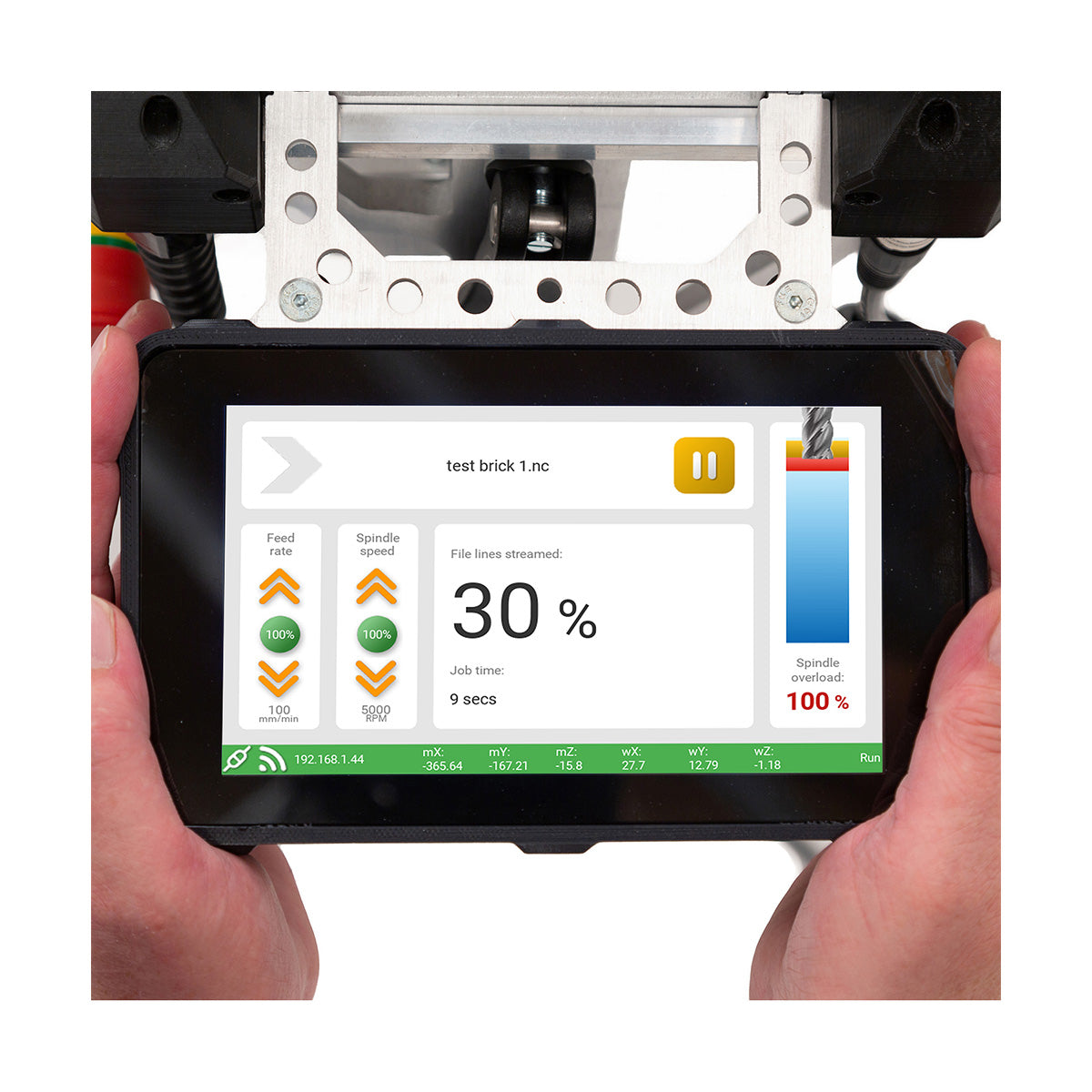

- Real-time spindle load display
- Precision ER16 collet - max 10mm shank
- Dual Z-Axis Lead Screws for additional rigidity

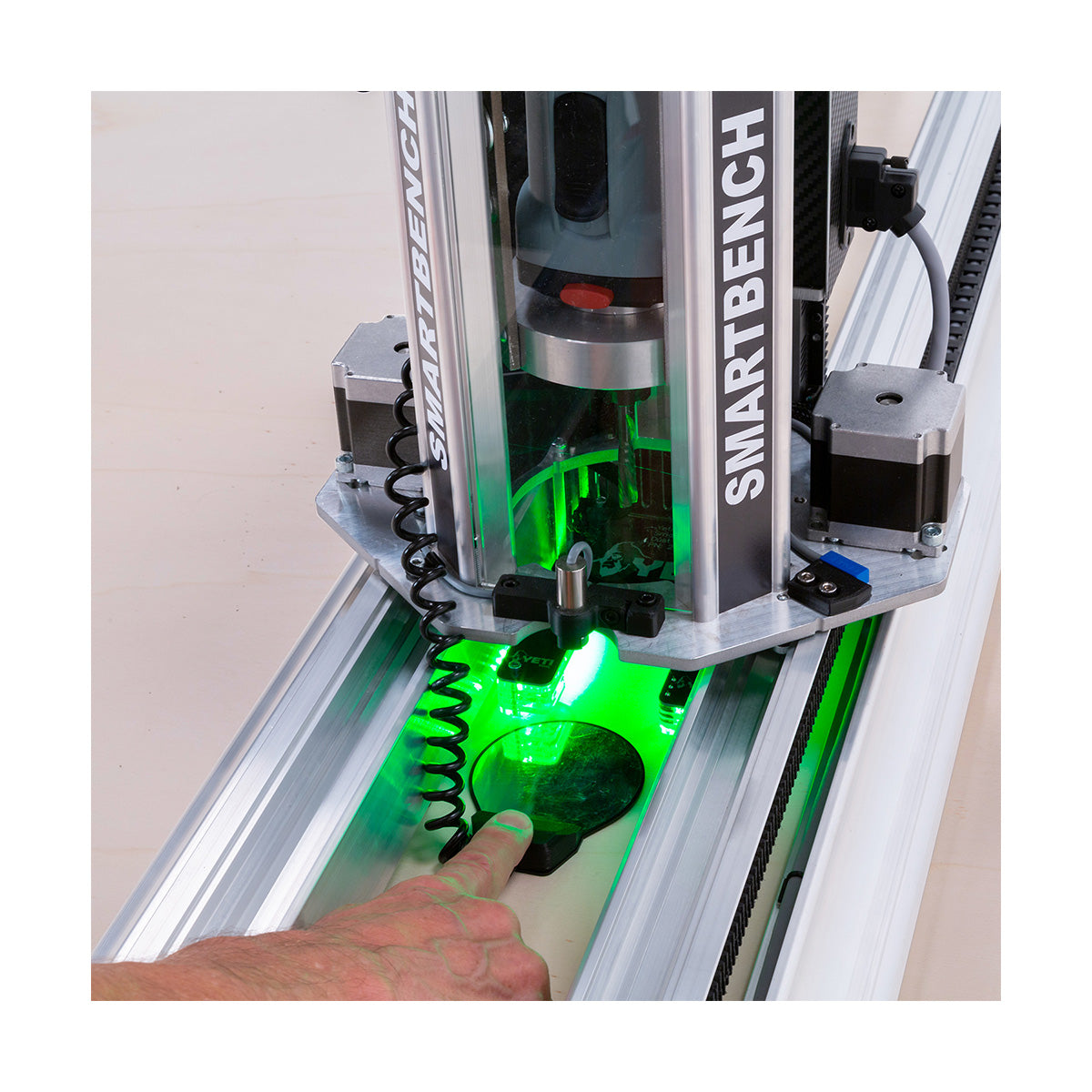

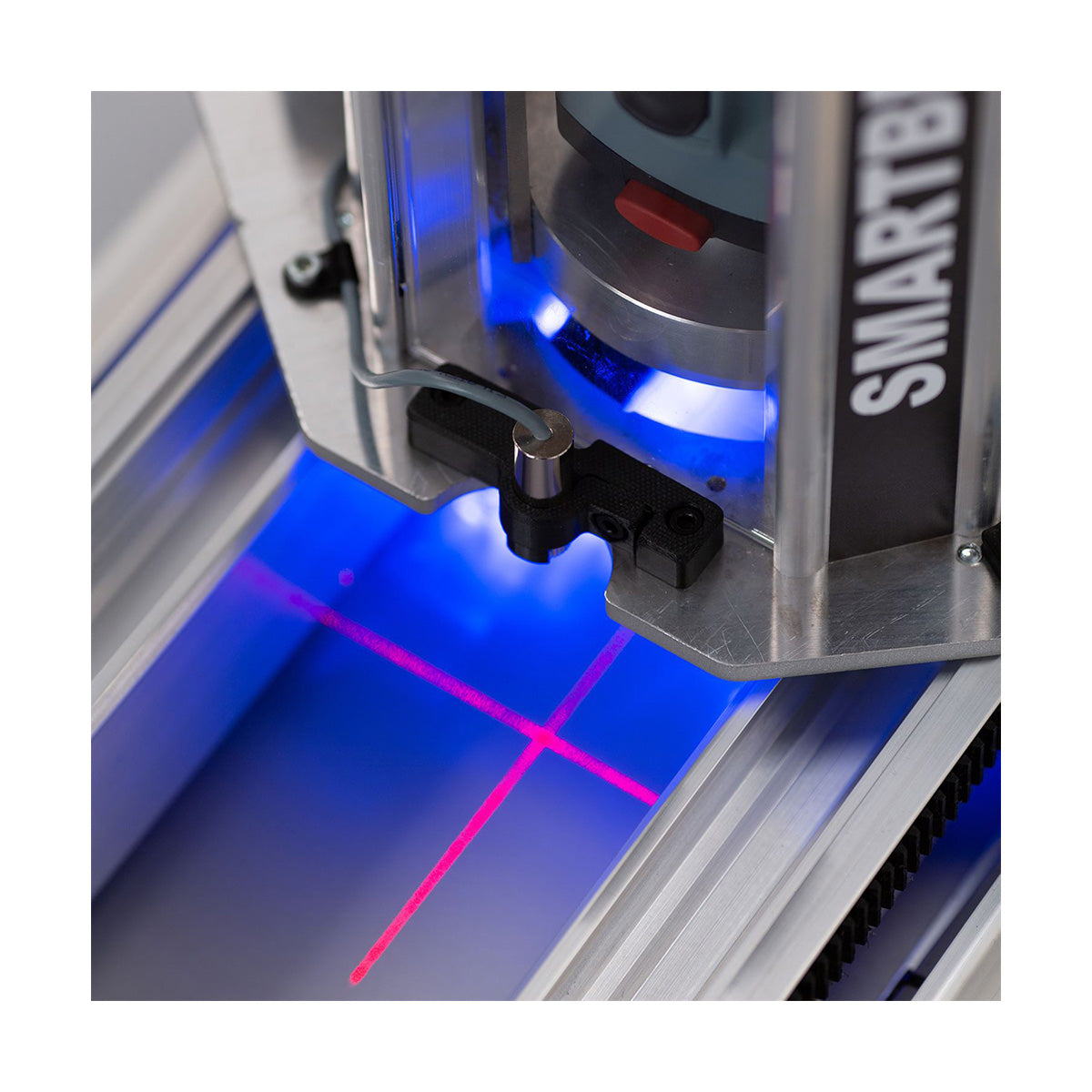

- Laser X/Y Datum set point system
- Can accommodate up to a 10 amp extraction system
Shape Cutter

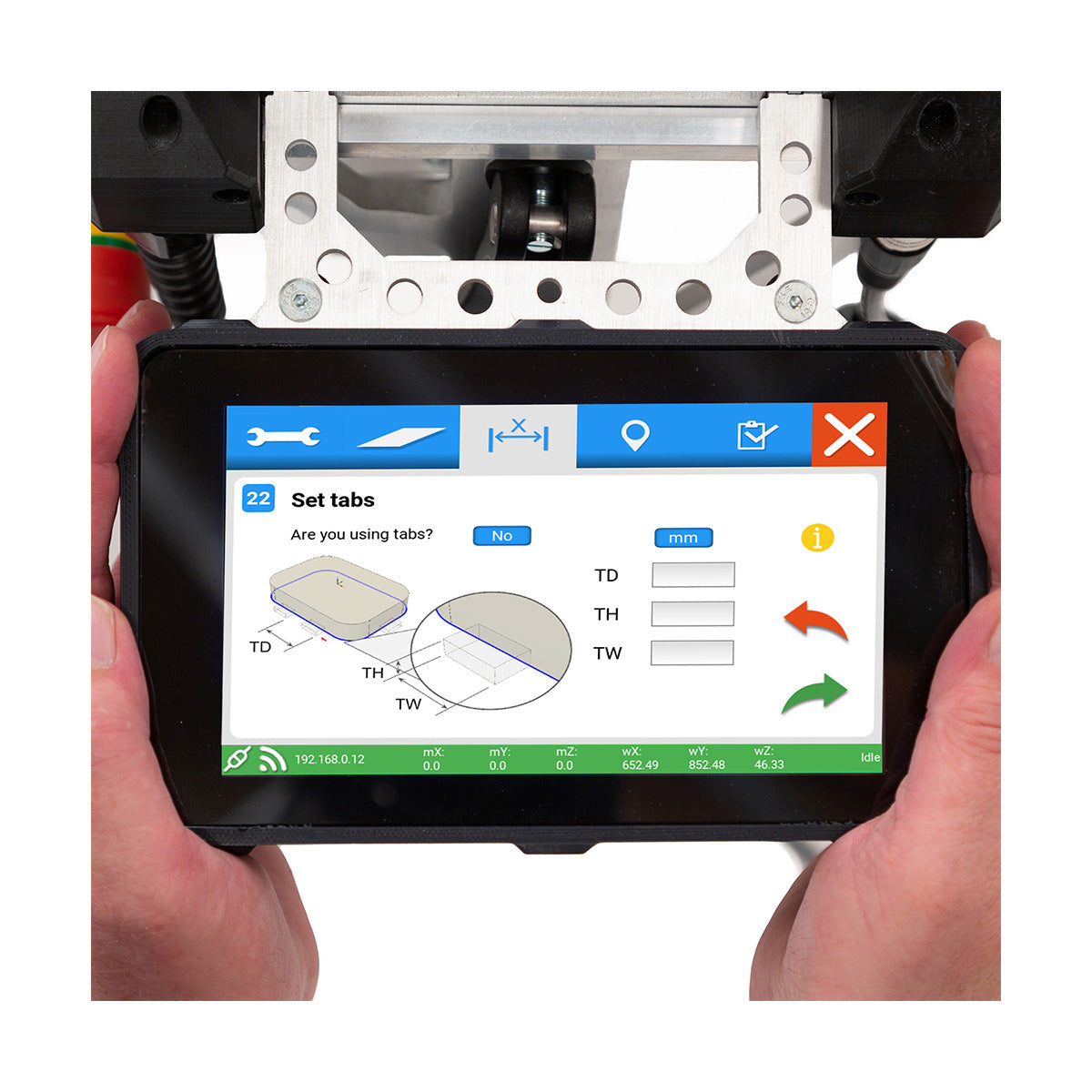

- Easy to use step-by-step set-up wizard walks you through your cut.
- Navigation tabs allow you to navigate through the setup tasks.
- 10 different geometry types to choose from.
- Save your tool/job profile for a quick job turnaround.
- Prompts and hints on process.
- Compatible with both inches and millimeters.
Ease of use

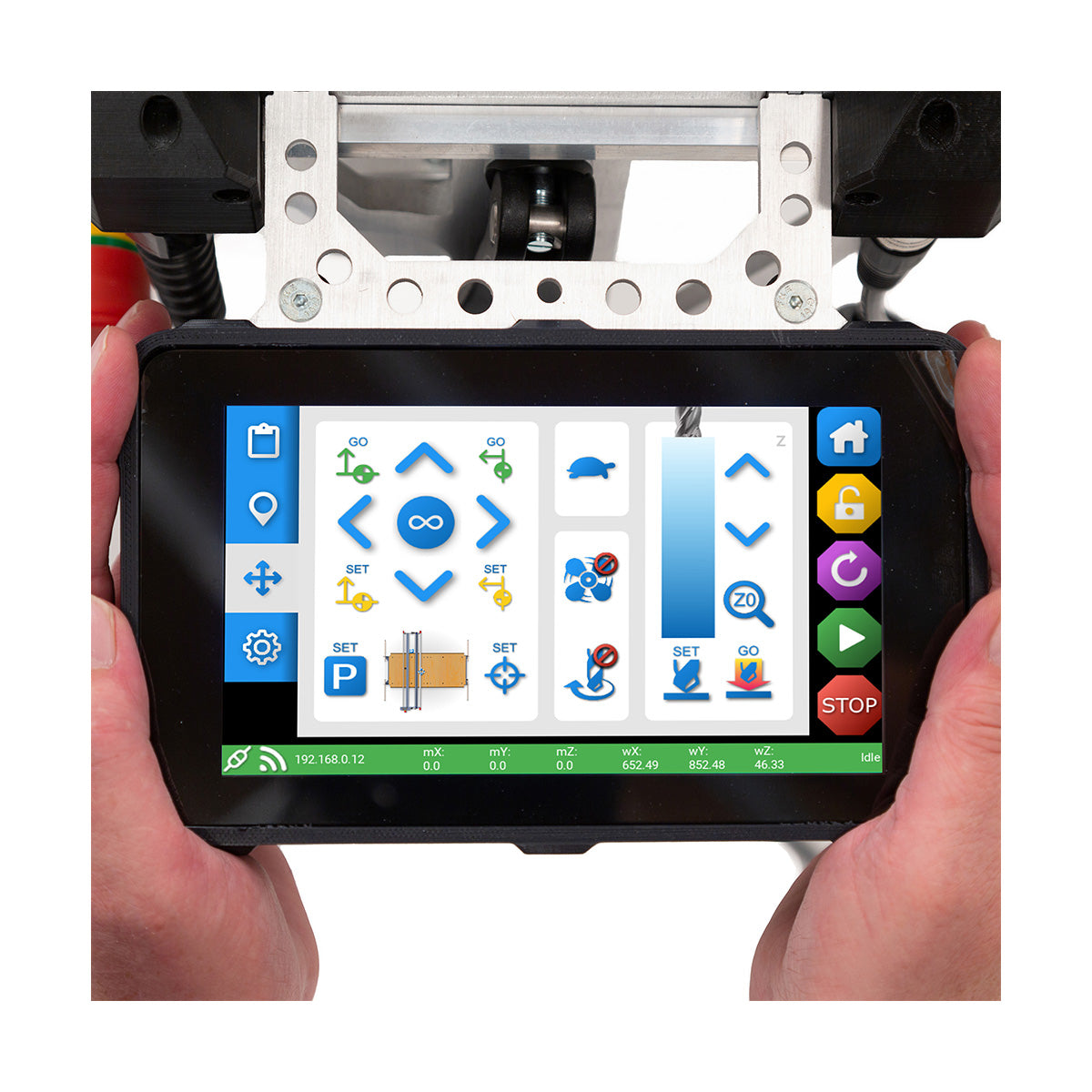

- Intuitive touch screen control.
- Wi-Fi (2.4GHz Network only)/USB connectivity for simple file transfer.
- Z Probe for fast, easy, and accurate setting.
- Extraction system for clean operation.

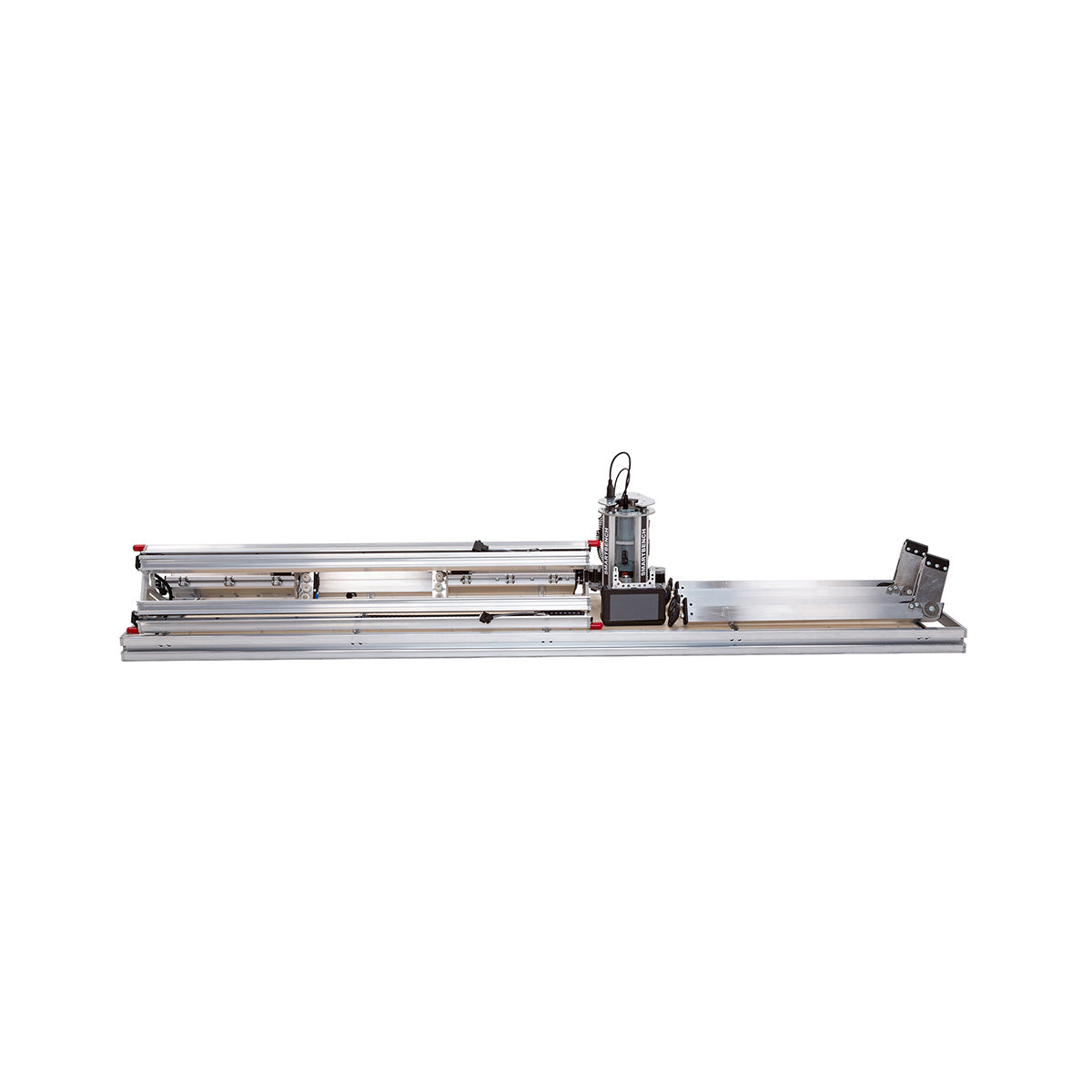

- Pack up and store away in 3 minutes.
- Easy and quick calibration app ensures your SmartBench is always in tip-top condition.
Improve efficiency
- Autonomous cutting – Working with you. SmartBench gets the job done whilst allowing you to get on with other tasks.
- Fast setup – plan your job on the touch screen, set your materials and press go.
- Astonishing job time – SmartBench can perform multiple cutting operations, dramatically improving your job time.
Portable
- SmartBench fits into a SWB van.
- Sections have been made to be handled by one person.
- Nothing more required to start producing standard shapes than SmartBench and a router bit.
- Set up on-site within 3 minutes.

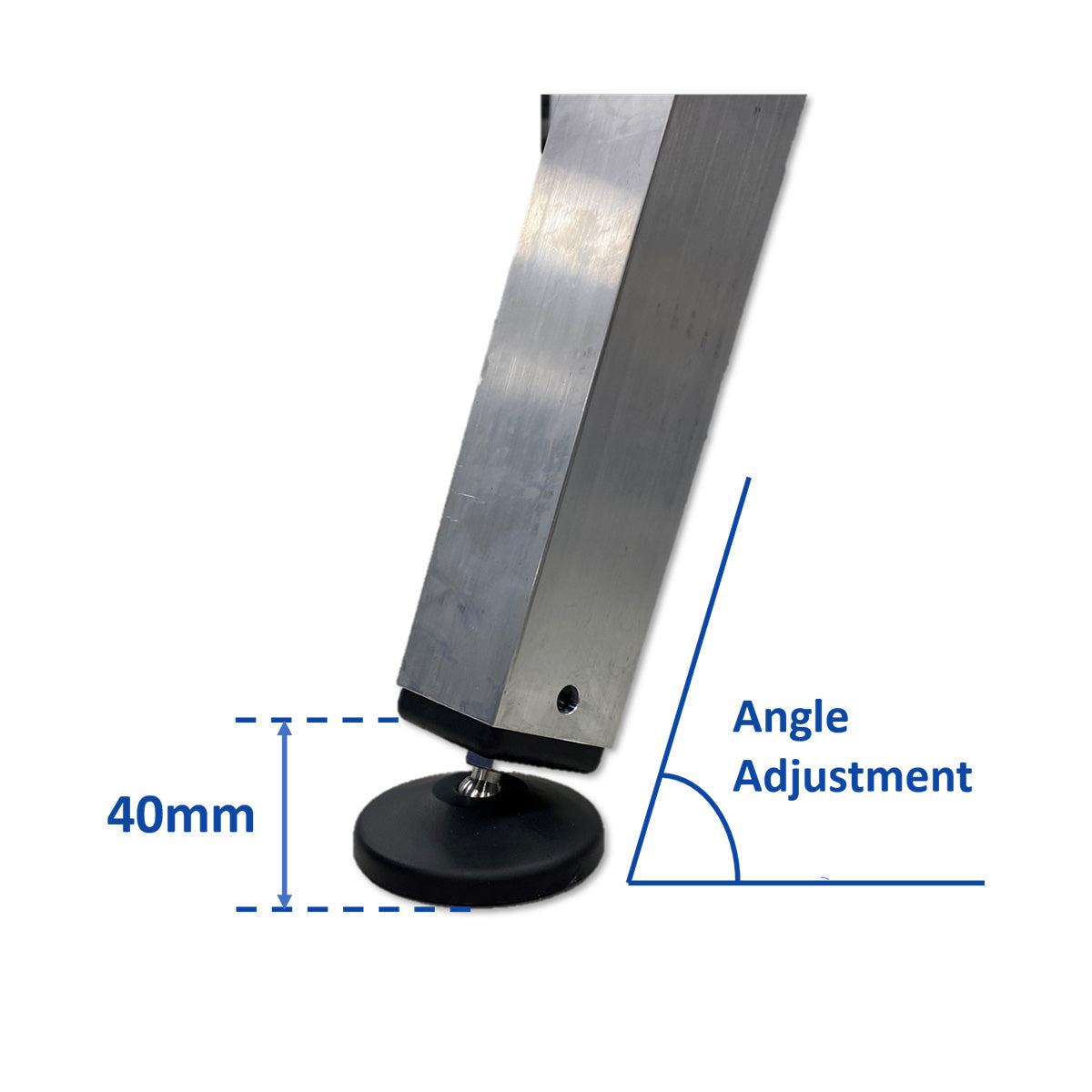

- Height adjustable feet makes light work of setting up on uneven surfaces.
Big capabilities
- Process up to 2500mm (98.43'') x 1250mm (49.2'') sheets edge to edge.
- Use SmartBench in feed-through mode and process any length of work surface.
Multi materials
- Softwood and hardwood timber sections up to 150mm thick.
- Timber based composite boards
- Composite work surfaces
- Polycarbonate, Acrylic, and other forms of plastic
Quality and accuracy
- Accuracy of +/-0.5mm or better
- CE certified
- Remote software upgrades means you get the benefit of our ever-increasing library of cutting apps
Safety in mind
- E Stop
- Interrupt bars along the x-axis
- Cutter door open cut out switch
SmartBench Model Comparison
Feature |
Standard |
PrecisionPro |
Feature Standard Precision PrecisionPro Z-Head V2 |
✔
|
✔
|
Yeti SC0 Spindle Motor |
✔
|
✘
|
Manual spindle motor speed control |
✔
|
✘
|
YetiTool SC1 spindle motor |
✘
|
✔
|
Digital Spindle Motor Speed control |
✘
|
✔
|
Auto tool stop if spindle under too much load |
✘
|
✔
|
Real-time spindle load display |
✘
|
✔
|
Dual lead screw Z-axis |
✘
|
✔
|
Laser X/Y Datum Point |
✘
|
✔
|
Finish part precision +/-0.5mm or better |
✔
|
✔
|
Collet type |
OZ
|
ER16
|
Maximum shank diameter |
1/4"
|
1/4"
|
Specifications
X-axis travel: |
49.8" (1265mm) |
X-axis maximum speed: |
236" per minute (6 meters per minute) |
Y-axis travel: |
99.0" (2515mm) |
Y-axis maximum speed: |
236" per minute (6 meters per minute) |
Z-axis travel: |
6.0" (152mm) |
Z-axis maximum speed: |
78" per minute (2 meters per minute) |
Maximum sheet cut size: |
98.43" x 49.2" (2470 x 1237mm) |
Maximum depth of material: |
6.0" (152mm) |
X & Y-Axis: |
Rack and pinion |
Z-Axis: |
Lead screw |
Spindle speed: |
5,000 – 25,000 rpm (model dependent) |
Collet size: |
ER16 1/4" collets shipped for Canadian purchases |
Voltage: |
110/115V |
Power |
1000 Watts. |
Accuracy: |
Accurate to +/-0.5mm (0.019685") or better, over a 2.5m (98.43") distance. |
Assembled dimensions: |
107.9" (2740mm) L x 65.0" (1650mm) W x 53.2" (1350mm) H |
Assembled weight: |
225 lbs (100kg) |
* 220/230V model requires 220/230V Dust Extractor to utilize auto-on dust extraction.
What else do I need?
CAD/CAM software
In order to get cutting, you’ll need to use your own CAD/CAM software to design and create your projects. We recommend you use Vectric Aspire, Vectric VCarve, or Fusion 360 however any CAM processor that produces GRBL output will work fine!
Router bits
Standard router bits can be used to fit the router head. Canadian systems are shipping with a 1/4" collet.
Remember though that high-quality CNC router bits will yield better results.
See our selection of Amana CNC router bits here.

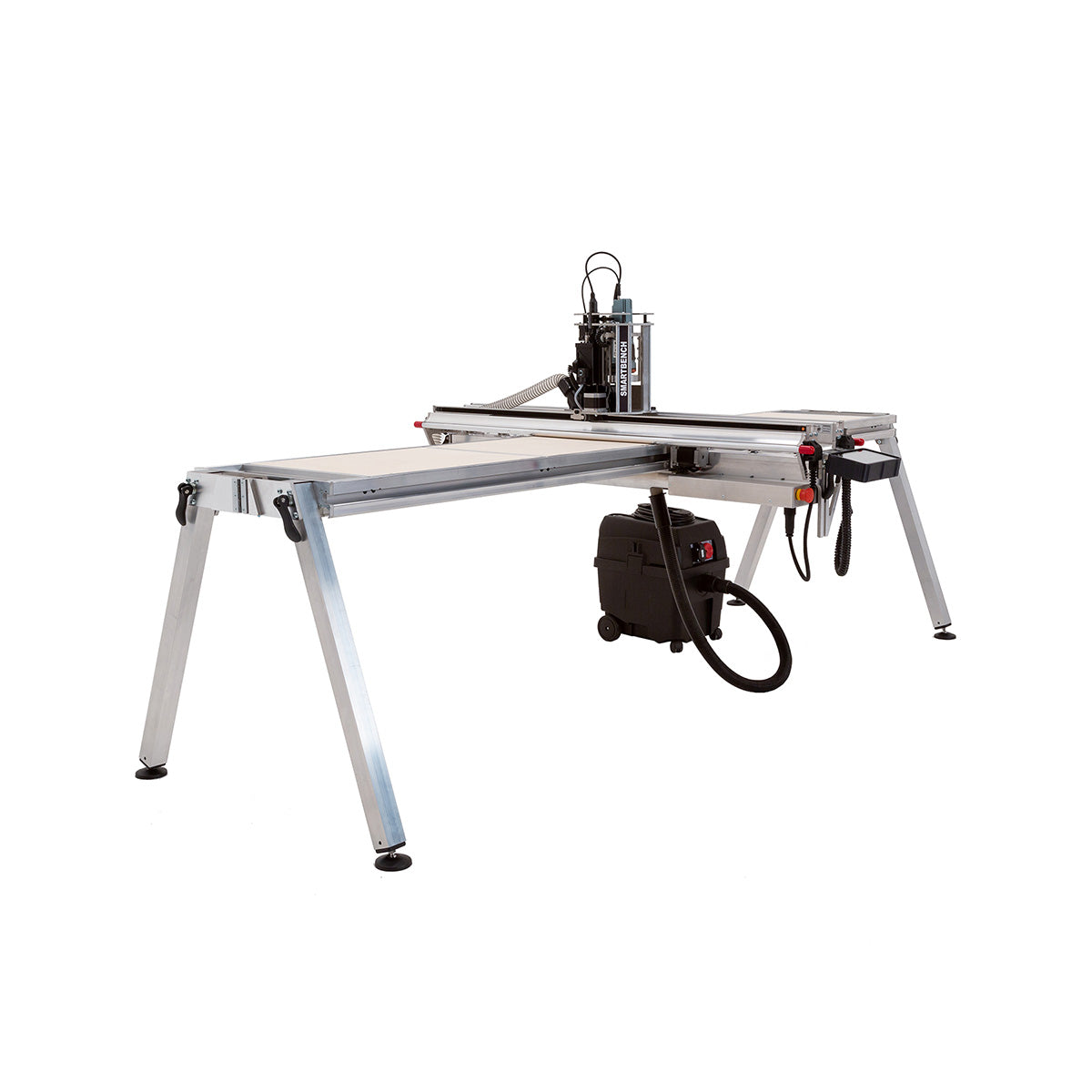

Dust extraction
You will need to provide a dust extraction unit to attach our standard hose to, and then plug the power supply into the on/off socket provided.
Please see our selection of Festool Dust Extractors here.
Warranty & Installation
Installation
We've designed our routers as a self install product to negate the need and cost of any professional installation.
Once you receive your router and have unpacked it, installation is easy, just follow our comprehensive instructions and you'll be up and running in approximately 5 minutes.
Maintenance
Please visit Yeti's maintenance page for details of the 50, 100, and 320-hour checks and maintenance procedures to perform
Packaging
We appreciate the experience of receiving your router is all part of the buying experience. So we’ve thought about that too.
Our packaging has been designed to be easily handled by one person as it is easily separated into four cartons.
Box |
Width |
Height |
Length |
Weight |
1 |
360mm (14.2'') |
350mm (13.7'') |
550mm (21.7'') |
15KG (33.7 lbs) |
2 |
360mm (14.7'') |
360mm (14.7'') |
1550mm (61'') |
35KG (78.8 lbs) |
3 |
540mm (21.3'') |
110mm (4.3'') |
2700mm (106.3'') |
45KG (101.3 lbs) |
4 |
350mm (13.8'') |
260mm (10.2'') |
1100mm (43.3'') |
10KG (25 lbs) |
Packaging dimensions are subject to change.
Box Contents
Box |
Items |
1 |
Z Head, EasyCut Console, Tools |
2 |
Upper and Lower X Beams, Power Leads |
3 |
Y Bench |
4 |
Legs |
