Revolutionary New Control Produces Superior Torque
Pulse Width Modulation efficiently delivers more torque at low- to mid-range speeds, minimizing RPM loss.
PWM delivers power to a DC motor through a succession of voltage pulses rather than adjusting voltage or current.
PWM vastly improves efficiency at low- to mid-range speeds and substantially decreases the loss of torque under load.
How Does Pulse Width Modulation Differ From Standard Controllers?
Typically a controller limits voltage or current to adjust the speed.
This limitation results in less torque being available especially at low to mid-range speeds.
The voltage not being used is converted to heat that can damage electrical components after prolonged use.
Upgraded Bearings - The front bearing is a double-sealed 6006 LLU Ball Bearing. The basic dynamic load rating is 31% higher than a typical 6005 ball-bearing & the basic static load rating is 42% higher than a typical 6005 ball bearing.
The rear bearing is fitted with a 6005 LLU Ball Bearing. The basic dynamic load rating is 8% higher than a 6004, & the basic static load rating is 16% higher than a 6004.
Standard Features:
- 24 Position Index System with Lock & Transparent Window

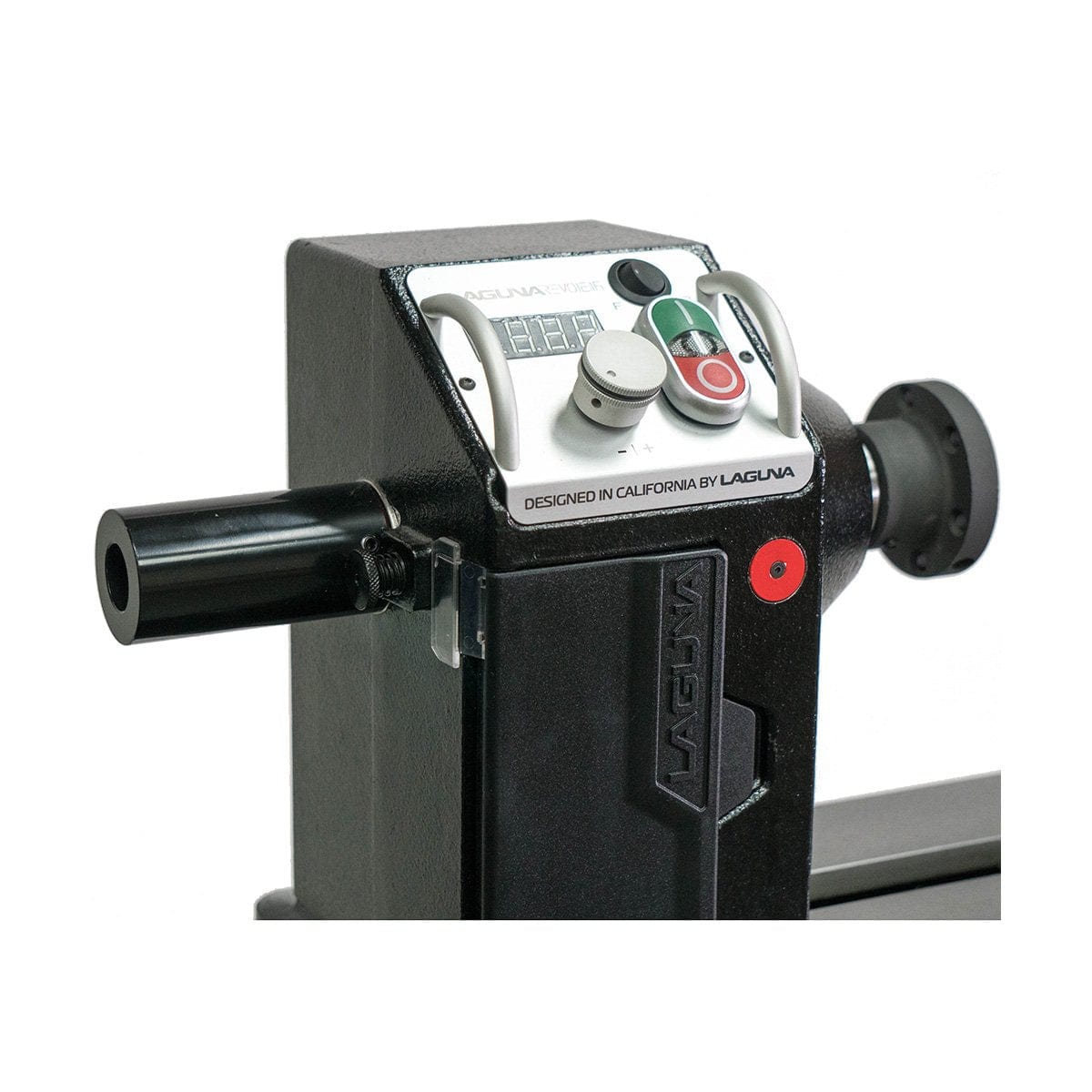

- Electronic Variable Speed & RPM Digital Read Out (DRO)
- Pulse Width Modulation (PWM) Motor Control
- Hardened 1045 Steel Tool Rest Leading Edge
- Luxury Banjo with 45° Chamfered Edge
- Live & Drive Center On-Board Storage
- Forward & Reverse Spindle Rotation
- Premium Banjo & Tailstock handles
- 1” REVO Compatible Tool Rest Post
- 3-1/2” Solid Polished Handwheel
- ACME Lead Screw in Tailstock
- Drive Center Knock-out Rod
- Live Center & Drive Center
- Magnetic Door Latches
- Tool-less Belt Change
- Faceplate Wrench
- 3” Faceplate
Optional Accessories:
Premium Stand - Adjustable from 39”– 45” at spindle center & featuring ergonomic multi tool shelving. Net Weight is 81 lbs. making the Revo 12|16 mounted on stand a combined 199 lbs.
Bed Extension Set - 10” Cast Iron Extension, Tool Rest Extension, and Spindle Adapter LH | RH 1” X 8 TPI.
Industrial Flood Light - Dust-proof ribbed aluminum case swivels 320°, features bright glare-free floodlight & built-in transformer.
Deluxe Wheel System - The Wheel System is designed for maximum stability & ease of use. Simply step on pedal to engage.
Specifications
| Motor: |
1 HP DC Permanent Magnet Motor |
| Controller: |
Pulse Width Modulation (PWM) |
| Electrical Requirements: |
110V, 15A, 60Hz 1Phase |
| Speed Range High: |
650 - 3500 RPM |
| Speed Range Mid: |
325 - 1750 RPM |
| Speed Range Low: |
50 - 525 RPM |
| Distance Between Centers: |
15.5” |
| Swing Over Bed: |
12-1/2” |
| Swing Over Banjo: |
9-1/2” |
| Max. Outboard Swing: |
16” |
| Spindle Bore: |
3/8” |
| Spindle Taper: |
MT2 |
| Spindle Thread: |
1”x 8 TPI (both ends) |
| Bearings: |
6006LLU Front - 6005LLU Rear |
| Indexing: |
24 positions w/ Lock |
| Drive belt: |
Poly-V Belt 6 Grooves |
| Tailstock quill travel: |
2-1/2” |
| Tailstock taper: |
MT2 |
| Bed Length: |
29.4" |
| Tool Rest Length" |
6” |
| Tool Rest Post Diameter: |
1” |
| Faceplate Diameter: |
3” |
| Floor to bed height: |
6.7” no pads |
| Floor to Spindle Center: |
13” no pads |
| Overall Size: |
L29.4” W8.9” H17.4” |
| Shipping Dimensions: |
L35.8” W14.6” H20.5” |
| Net Weight: |
118 LBS |
| Shipping Weight: |
125 LBS |
| Certification: |
CSA C/US 256540 |
