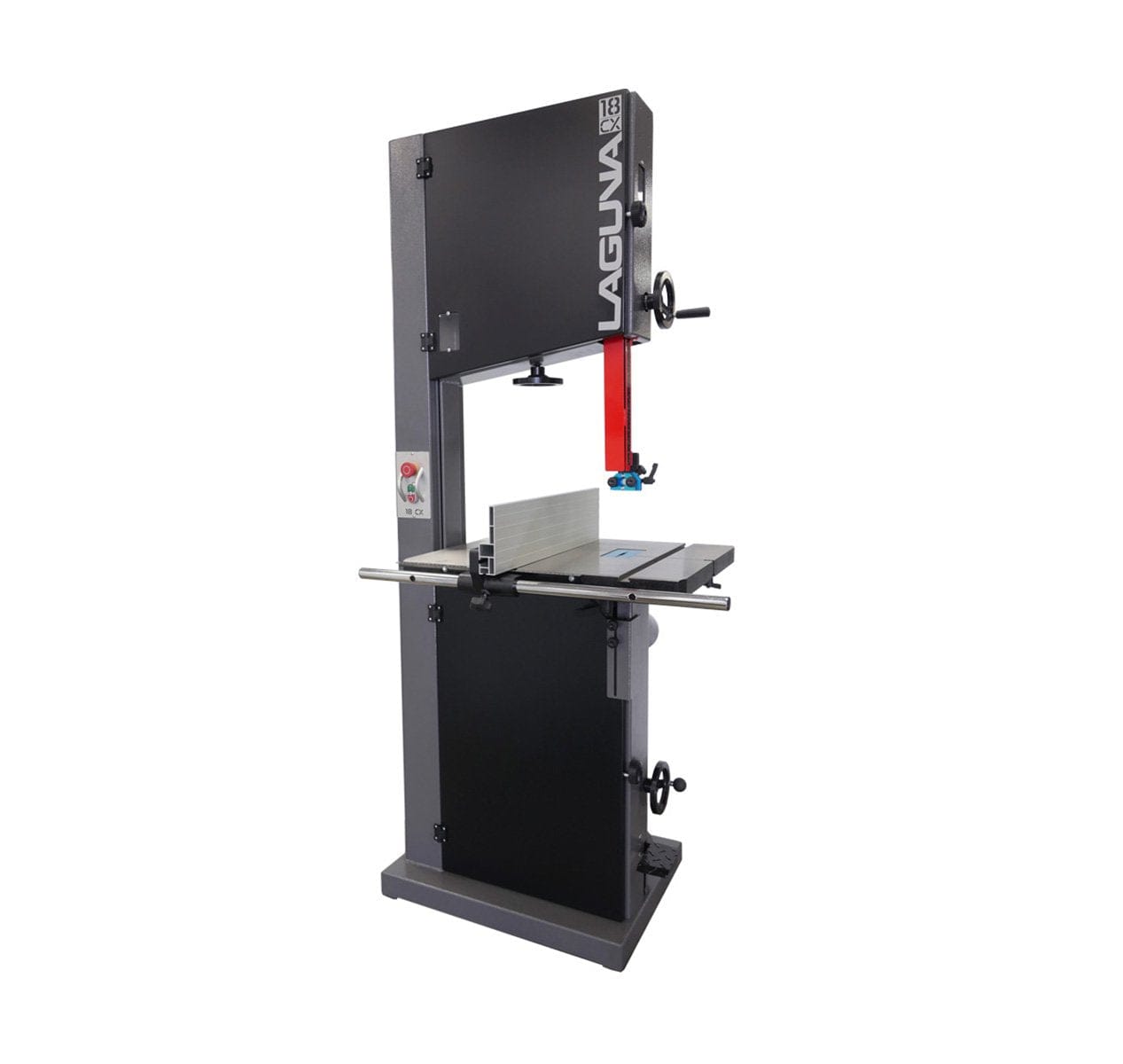

The 18|CX Bandsaw follows in the traditions of high-performance and reliability to be expected from a Laguna Tools Bandsaw. The 18|CX is built with a 1.75HP, 110V motor and features variable speed control to cut through metals and wood with ease.
Features:
- Magnetic Starter
- Disc-Brake with Micro Switch
- 110V Outlet on Back for Light
- Window for Tension:
- Window for Tracking
- Magnetic Blade Tension Guide
- Worm Gear & Pinion Upper Guide
- 10 Point Laguna Ceramic Guides

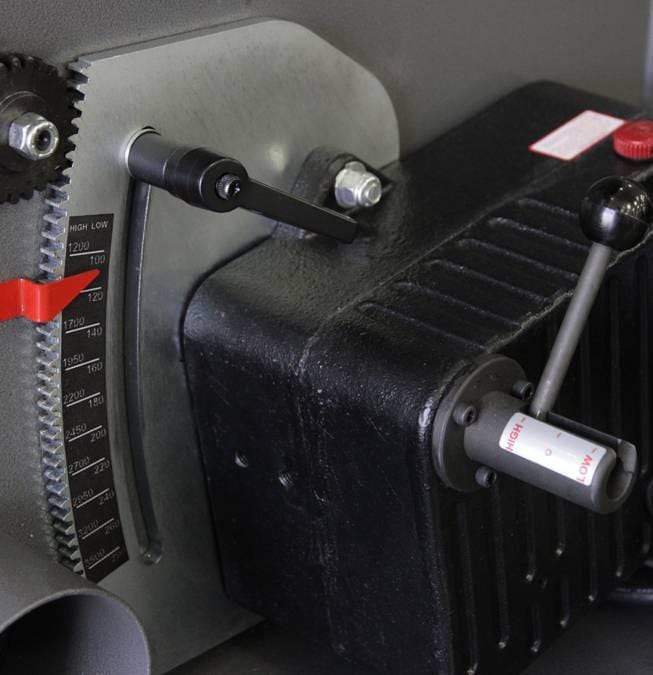

- Mechanical Variable Speed Drive
- Low Blade Speed: 100-290 FPM
- High Blade Speed: 1200-3500 FPM
- Anodized Insert w/Micro Adjustment

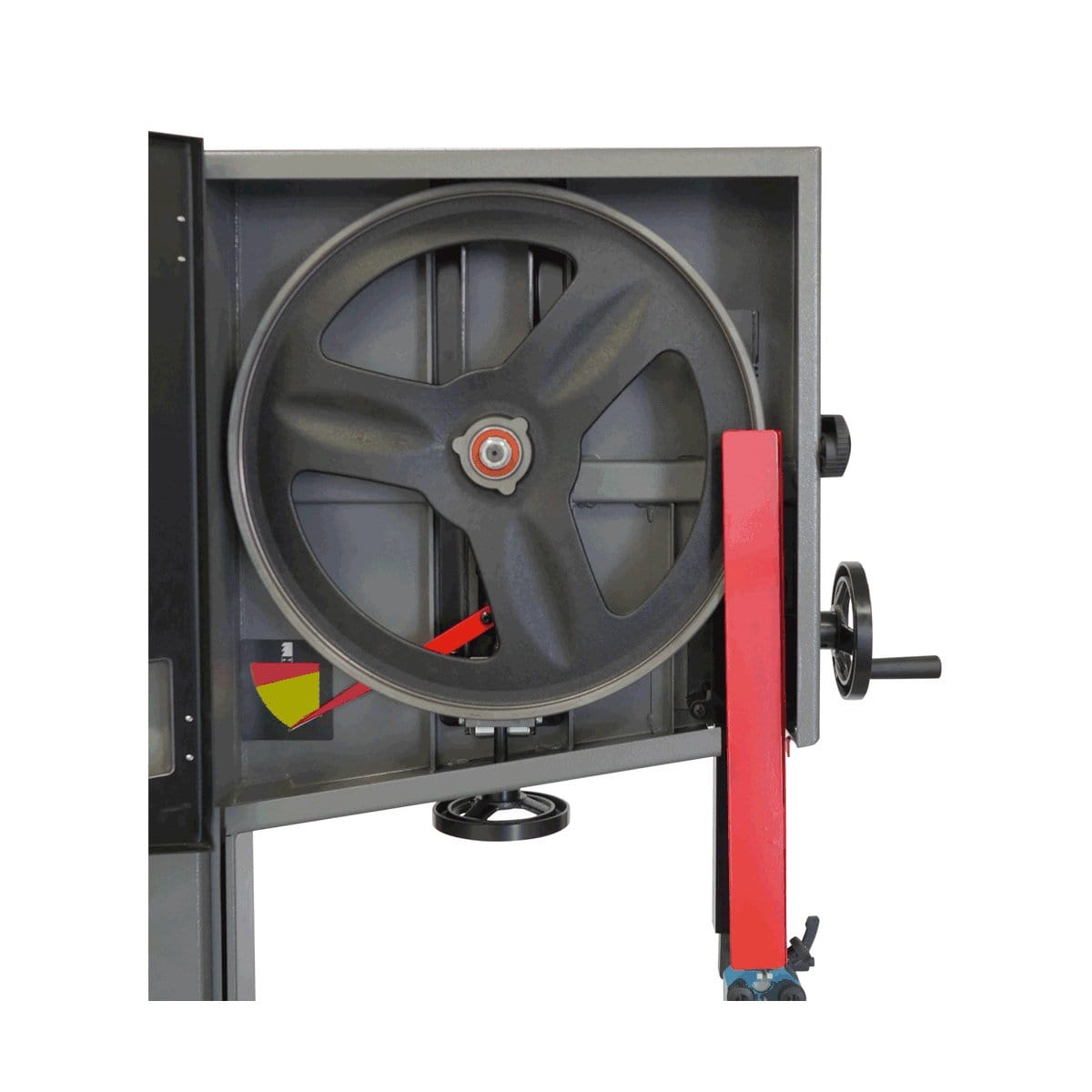

- Dynamically Balanced Cast Iron Wheels
- Urethane Single Piece Snap-on Tire
- Quick-Release Tension
- Hi/Low Anodized Aluminum Fence
- Dust Ports: 2 x 4"
Laguna Bandsaws do not ship with blades from the factory
Order your 145" blades here
Specifications
| Specifications |
| Motor: |
1.75HP, 110V, 60Hz, 14.7A, 1-Phase |
| Low-Speed Range: |
100-290 FPM |
| High-Speed Range: |
1200-3500 FPM |
| Minimum Blade Width: |
1/8" |
| Maximum Blade Width: |
1-1/4" |
| Resaw Capacity: |
16" |
| Throat: |
18-7/32" |
| Blade Length: |
145" |
| Cast Table Size: |
20" x 26" |
| Table Tilt: |
-6°, +45° |
| Hi/Low Anodized Aluminum Fence: |
22-3/4 x 7-1/4 x 11/16" |
| Table Height: |
38" |
| Dust Ports: |
2 x 4" |
| Overall Height: |
77-3/4" |
| Base Dimensions: |
27" x 20" |
| Overall Dimensions: |
36" x 30" |
| Net Weight: |
480 lbs. |
| Shipping Dimensions: |
82" x 34" x 36" |
| Shipping Weight: |
545 lbs. |
