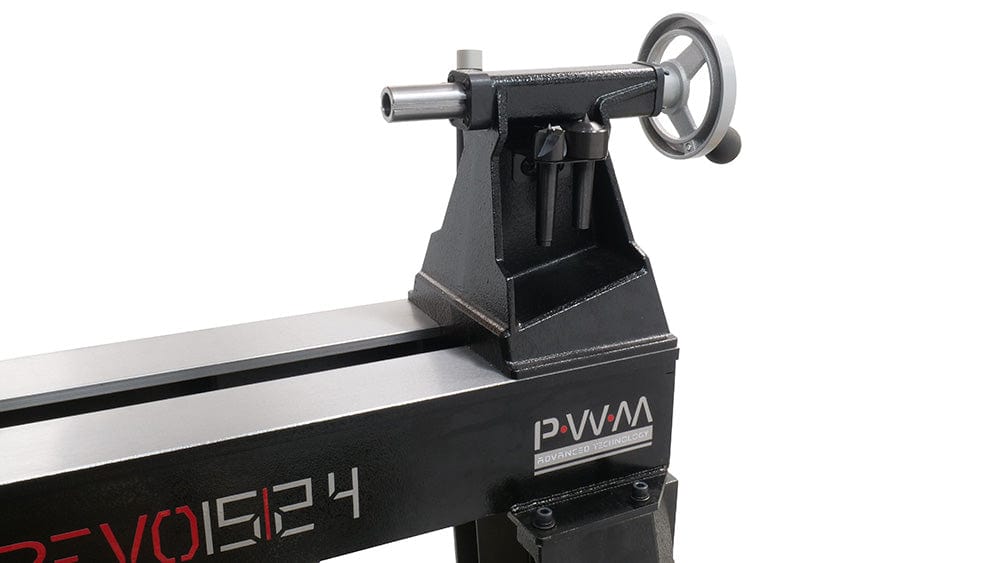

Revo 15|24 Wood Lathe

$2,699 CAD $2,999 CAD /
Subscription -

Combine and save on shipping

With the launch of the Revo 15|24, Laguna is filling the gap between the Revo 12|16 & the legendary Revo 18|36, providing space-constrained users with more power and capacity.

  • World-class fit and finish Laguna is known for
  • Sliding headstock
  • Infinite electronic variable speed from 50 - 4200 RPM with a 3 step pulley
  • Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
  • Adjustable-height legs allow a more ergonomic working position tailored to individuals needs
  • Steel bed provides strength, stability, and a surface that the banjo will glide across smoothly
  • A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center
Specifications
Electrical: 1.5HP, 110 Volt, 8 Amp, 60 Hz.
Motor: Permanent Magnet DC, 2150 RPM
PWM: Pulse Width Module Speed Control
Swing over Bed: 15-1/2”
Swing over Banjo: 11-3/32"
*Outboard Swing: *25"
Tool-Rest Post Size: 1"
Tool-Rest Length: 12"
Spindle Taper: MT#2
RPM High Range: 650-4200
RPM Mid Range: 325-2100
RPM Low Range: 50-650
Tailstock Quill: 4 1/2", Self-Ejecting
Floor to Spindle Center Low: 36.4"
Floor to Spindle Center High: 51.4"
Floor to Bed Minimum: 28.6"
Floor to Bed Maximum: 43."
Front Bearing: TPI Taiwan 6206LLU
Rear Bearing: TPI Taiwan 6205LLU
Spindle Index #: 24 w/ Lock
Distance between Centers: 24"
Headstock/Tailstock Through-Bore: 3/8"
Headstock Travel: Full Length
Spindle Size: 1 1/4" X 8TPI RH
Floor Space: W 60" D 22" H 56"
Shipping Dimensions: L 52" W 22" H 22"
Shipping Weight: 302 lbs.

* Requires optional bed extension.
