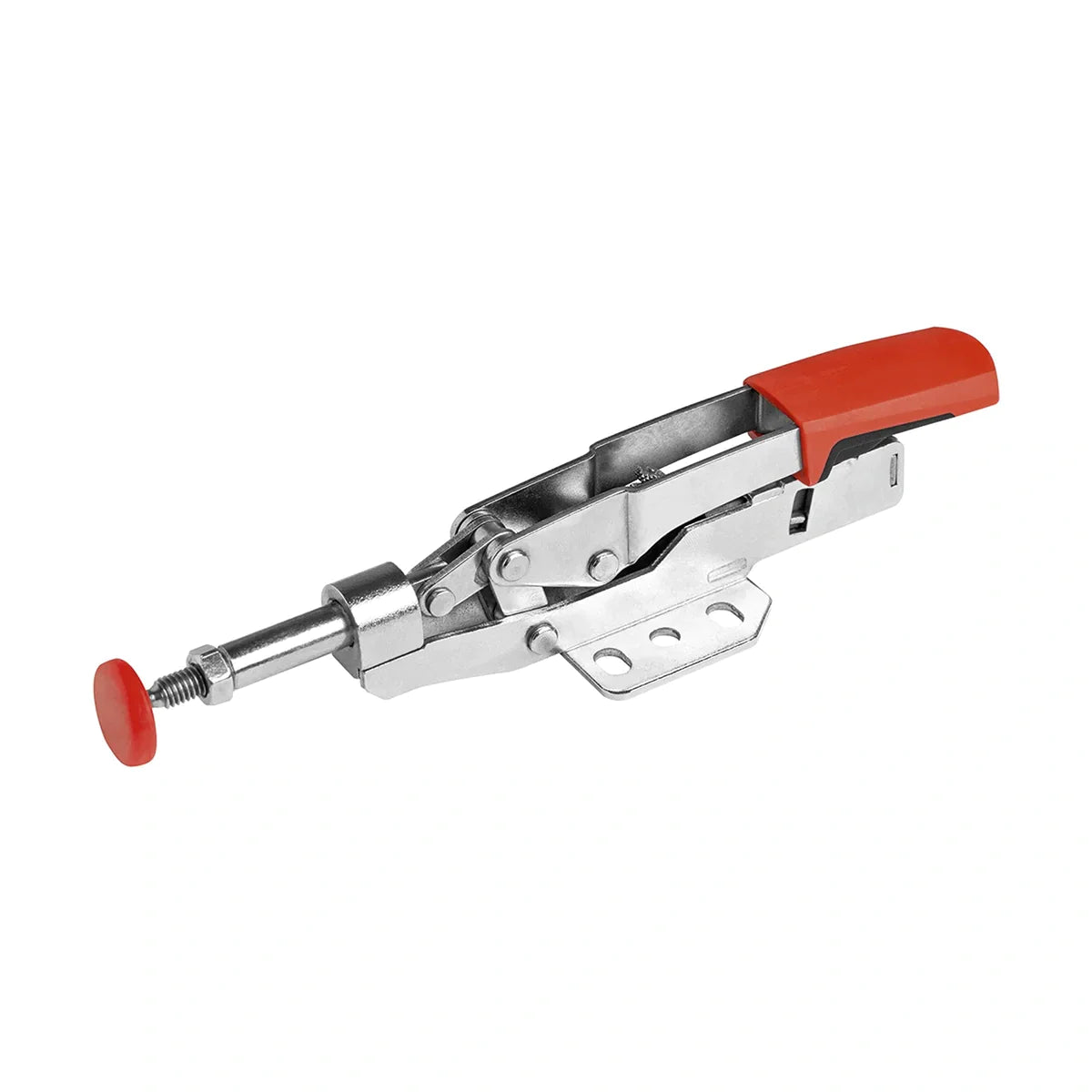

Bessey Tools® Auto‑Adjust Toggle Clamp, Inline Horizontal
SKU: STC-IHH-25
Bessey Tools® Auto-Adjust Toggle Clamps have changed the way toggle clamps are constructed with variable range clamping force and the ability to auto-adjust to variations in workpiece height while maintaining constant clamping force. Now workpieces of differing heights can be clamped quickly and securely – perfect for large and small-scale production situations. Performance flexibility offers advantages beyond traditional toggle clamps: safer operation, more consistent applied force and more flexible toolcribs.
Features:
- Auto-Adjusts to variations in work piece height up to 1/2"
- Holding capacity up to 700 lbs (nominal)
- Integrated pressure screw allows clamping force adjustment from 25-550 lbs
- Large ergonomic handle
- High quality construction
- Base construction is optimized for 1/4 IN (M6) fasteners
- Spindle has an M8 thread
Available Sizes:
| SKU: |
Clamping Capacity |
Auto Adjustment |
Clamping
Force |
Holding Capacity |
| STC-IHH25 |
5/8" |
1/2" |
25-550 lbs.* |
700 lbs. |
* Variable and dependent on spindle settings, pressure screw setting, force applied etc. Some small spindle adjustments may be required to achieve maximum clamping opening. Note: All clamping force values in this catalog are approximate as applied force can vary based on spindle settings, pressure screw settings, force applied etc.
