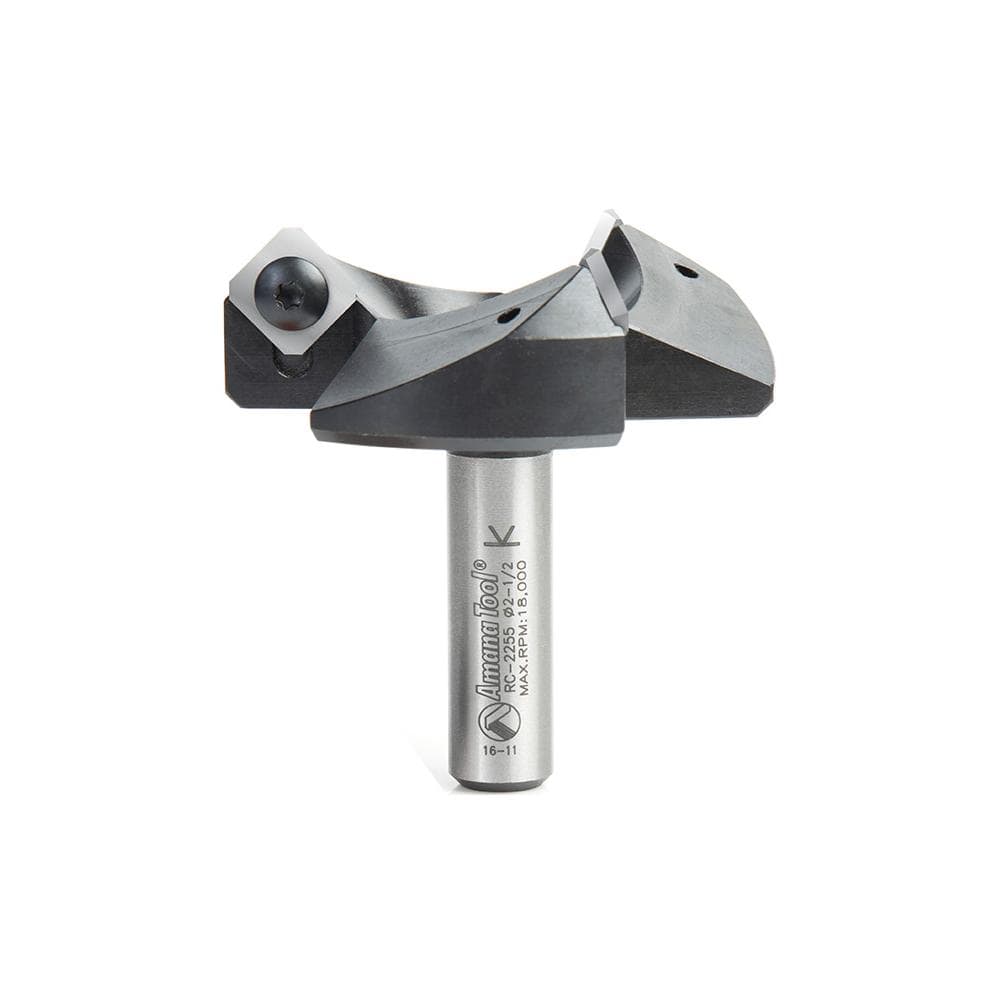

Amana Tool RC-2255 CNC Router Bit Insert Carbide 3 Wing/Flute Heavy Duty Spoilboard Plunging, Surfacing, Planing, Flycutter & Slab Leveler 2-1/2 Diameter x 53/64 x 1/2 Shank Router Bit

Insert Carbide 3 Wing/Flute Heavy Duty Spoilboard Plunging, Surfacing, Planing, Flycutter & Slab Leveler 2-1/2 Diameter x 53/64 x 1/2 Shank Router Bit

RC-2255

$219 CAD $219 CAD

Combine and save on shipping

(D) Diameter:	2-1/2"
(B) Cutting Height:	53/64"
(d) Shank:	1/2"
(L) Overall Length:	2-19/32"
(B1)	1/4"
Max RPM:	18,000
Flutes:	3
(D1):	2"
(D2):	5/64"
Replacement Knives:	RCK-459

Overview

Insert carbide spoilboard surfacing & chamfering router bit, great for planing large surface areas. Higher number of teeth allows for higher feed rate.

Perfect for:

Resurfacing spoilboards using CNC
Planing large glued up panels using CNC
Surfacing and finishing wood using timber slab machines
Rabbeting or slotting

Designed for planing & rabbeting the following materials:

MDF
Fiberboard
HDF/LDF
Balsa Core *
Epoxy (Epoxy Resins) *
High-Density-Urethane (HDU Board) *
Plastic/Acrylic *
Plywood/Chipboard *
Hardwood/Softwood *
Ultra-High-Molecular-Weight Polyethylene (UHMWPE) *

*For optimal results and maximum insert life, replace inserts with optional general purpose knives #RCK-457 (sold separately).

Featuring:

4-sided solid carbide insert knives
Exclusive carbide grade for highest quality of cut
Maximum cutting efficiency
Faster material removal process
Tool can plunge up to a maximum depth of 6mm (1/4"), then start resurfacing
Tool capable of removing very thin layers of material, less than 0.001" per pass
The unique chamfer corner insert design, creates a flawless surface.
The 3 wing design, resulting in a more balanced tool while running.

These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish available on woodworking tools.

Caution: Proper torques rating to tighten down screws is 2-3Nm Torques.

Tool Data Downloads

Tool #RC-2255-K Vectric Compatible Tool File
RC-2255-K tool file to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D, and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
Installation:
1. Download to a safe location such as your desktop.
2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

RC-2255-K Tool File

Speed & Feed Rates

Insert Carbide 3 Wing/Flute Heavy Duty Spoilboard Plunging, Surfacing, Planing, Flycutter & Slab Leveler 2-1/2 Diameter x 53/64 x 1/2 Shank Router Bit
