Overview

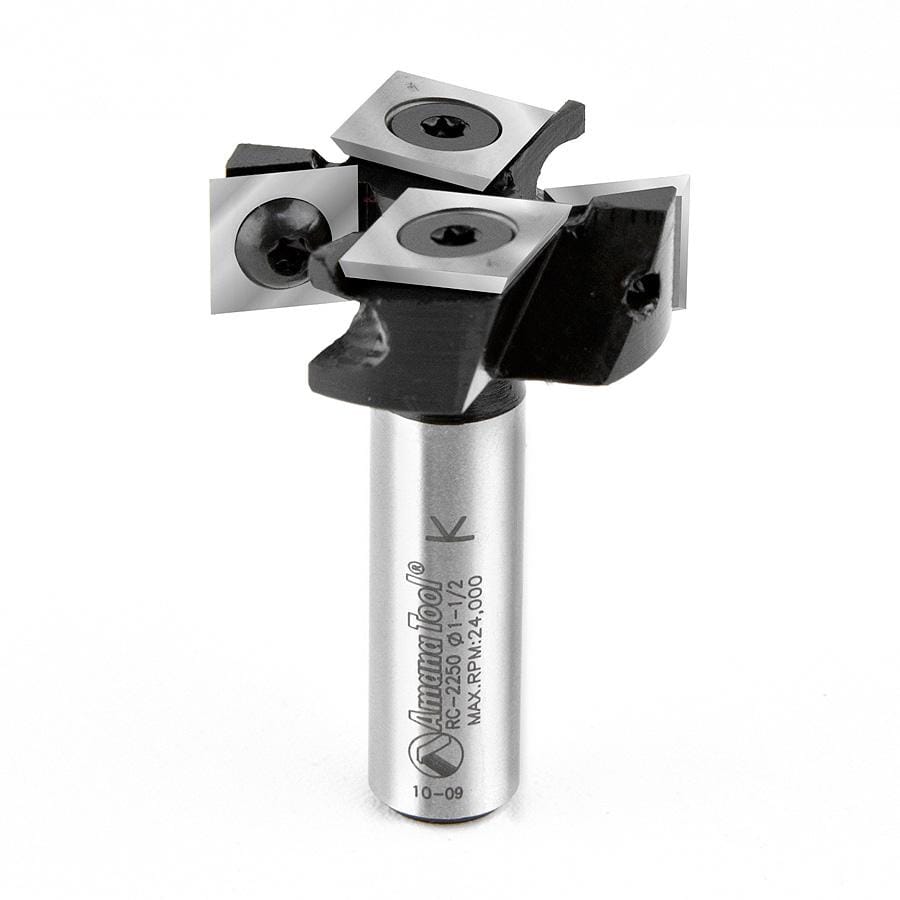

Mini insert carbide spoilboard surfacing & rabbeting with scorer, great for cutting tight corners. Features unique 2+2 insert knife design that contains two cutting flutes and two up-shear scorers, which provide a smoother finish at the bottom of the cut than traditional two-knife style router bits. Great for surface planing.
Also suitable for router sled machines. Caution make sure that your router sled is fully stable and squared.
Perfect for:
- Resurfacing spoilboards using CNC
- 2+2 spoilboards contain two bottom scorers for better performance, finer surface finish, and better clearance for 90º corners.
- Planing large glued up panels using CNC
- Surfacing and finishing wood using timber slab machines
- Rabbeting or slotting
Designed for planing & rabbeting the following materials:
- MDF
- Fiberboard
- HDF/LDF
- Balsa Core*
- Epoxy (Epoxy Resins)*
- High-Density-Urethane (HDU Board)*
- Plastic/Acrylic**
- Plywood/Chipboard*
- Hardwood/Softwood*
- Ultra-High-Molecular-Weight Polyethylene (UHMWPE)*
*For optimal results and maximum insert life, replace inserts with optional general purpose knives #AMA-12 and #RCK-70 (sold separately).
**Use lower CNC spindle RPM and adjusted feed rate to prevent Melting and adhesion of the acrylic material to the tool.
Featuring:
- 2+2 design
- 4-sided solid carbide insert knives
- Exclusive carbide grade for highest quality of cut
- Maximum cutting efficiency
- Faster material removal process
These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish available on woodworking tools.
Recommendations: For surfacing solid woods it is recommended to remove both bottom scorers.
Note: This tool is not designed to plunge! You must ramp down to a depth of 1/4" deep over a 20" run. Use the max RPM allowed and start with the feed rate (from the speed and feed chart), and go up until you get waves, then back down to a smooth cut/finish.
Warning: Proper torques rating to tighten down screws is 2-3Nm Torques.
Tool Data Downloads
Tool #RC-2250 Vectric Compatible Tool File
The RC-2250 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D, and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material. Installation: 1. Download to a safe location such as your desktop. 2. In the software, open the Tool Database and use the import option to load the file from the safe location.
Vectric File Warning
The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
Master Tool File
Speed & Feed Rates
