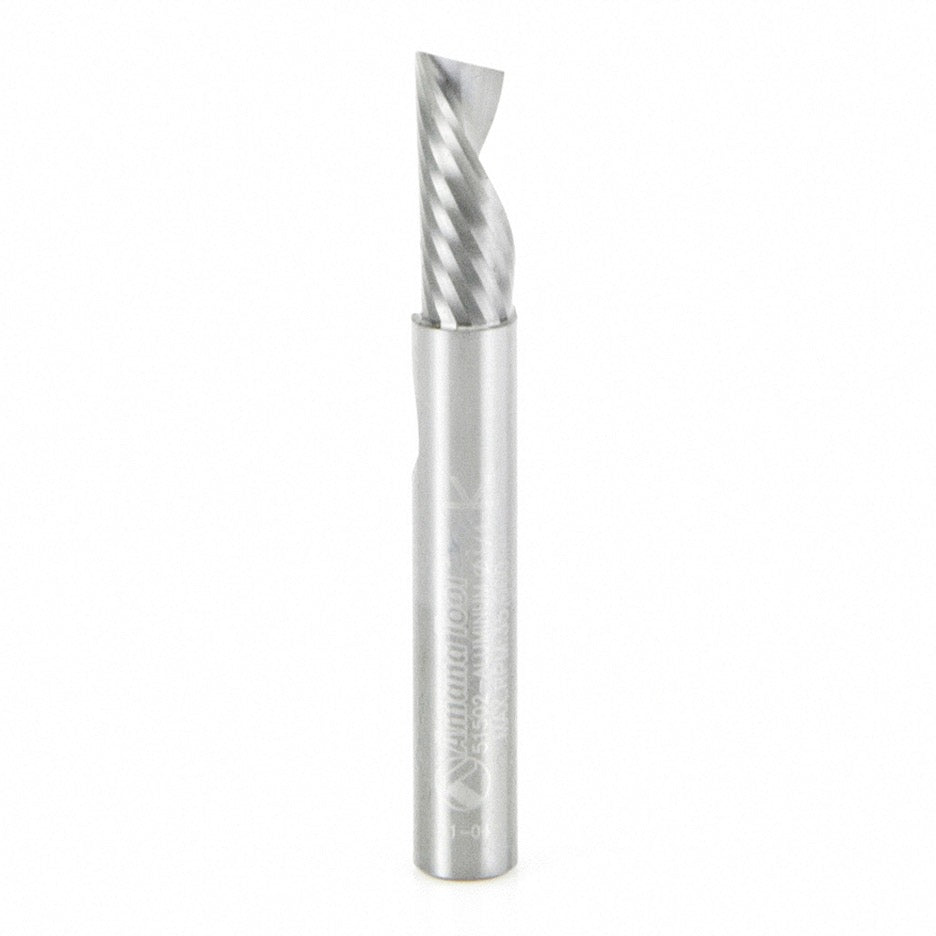

Amana Tool D 1/4 Inch O-Flute Downcut Spiral Router Bit for Aluminum with Zirconium Nitride Coating is to be used only on CNC machines and routers with automatic feeding.
Using the highest quality sub-micrograin carbide these bits have a special proprietary edge processing system featuring a super high polished cutting edge with a unique “mirror finish†resulting in clean cuts, less chance for chip re-welding, a superior surface finish and a longer tool life. Right hand helix right hand cut.
Specifically designed for a variety CNC machining applications excellent for cutting:
- ALPOLIC® Copper Composite
Material (CCM)
- Alucobond
- Aluminum
- Aluminum 5052
- Aluminum 6061
- Aluminum Alloys
- Aluminum Composite
Materials (ACM)
- Aluminum Composite Panel (ACP)
- Alupanel
- Brass
- Copper
- Dibond
- Durabond
- e-panel
- Etalbond
- Fomex with Aluminum Face
- Gold
- Non-Ferrous Metals
- Plastic
- Silver
- Solid Surface
- Titanium Composite Material (TCM)
- Wood
Ideal for industrial applications our spiral ‘O flute router bits are manufactured using innovative techniques and materials that yield superior results with each cut and help make aluminum projects less labor-intensive.
Benefits of Mirror-Finish:
- Razor sharp cutting edge
- Effortless chip removal
- Helps prevent chip re-welding
- Extends tool life
- Exceptional cut quality
- Dissipates heat well and prevents melting
Inspect cut quality adjust feed / speed accordingly.
For optimal results and extended tool life use mist lubricant system or air cooling.
Maximum RPM: 35,000
Warning: Never attempt to cut ferrous metals with these bits.
Amana Tool D 1/4 Inch O-Flute Downcut Spiral Router Bit for Aluminum with Zirconium Nitride Coating 51502-Z specifications
- 1/4 inch diameter
- 5/8 inch cutting height
- 1/4 inch shank
- 2 inch overall length
- 1 flute
