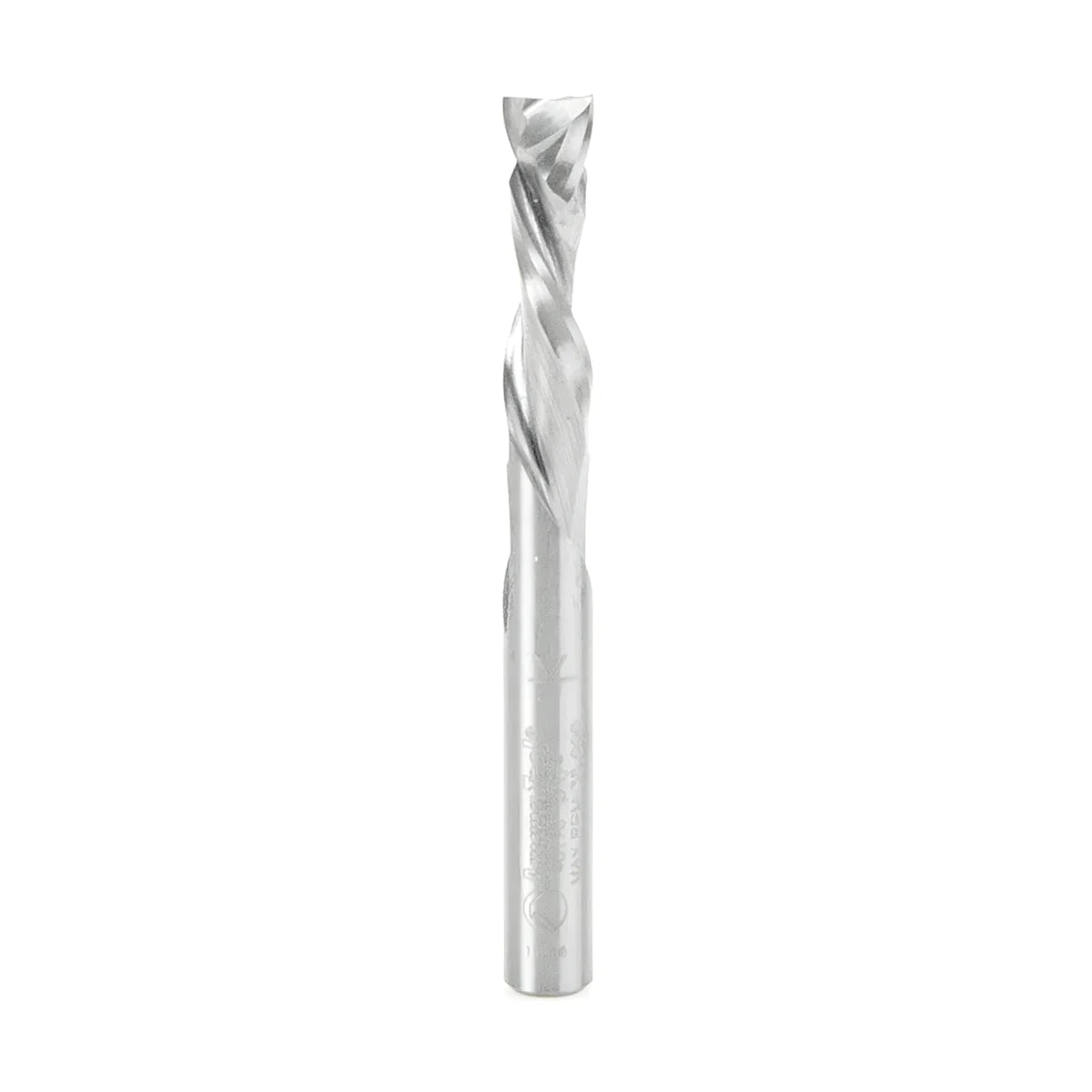

CNC Solid Carbide Compression Spiral 1/4 Diameter x 7/8 x 1/4 Inch Shank

Name: CNC Solid Carbide Compression Spiral 1/4 Diameter x 7/8 x 1/4 Inch Shank
Brand: Amana Tool
SKU: 46170
Price: 83.00 CAD
Availability: InStock

$83 CAD /

View compare Add to compare

Combine and save on shipping

Amana Tool CNC Solid Carbide Compression Spiral 1/4 Diameter x 7/8 x 1/4 Inch Shank

SKU: 46170

(D) Diameter:	1/4"
(B) Cutting Height:	7/8"
B1:	7mm
(d) Shank:	1/4"
(L) Overall Length:	2-1/2"
Flutes:	2

Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material.

Excellent for cutting:

Laminate
Laminated Plywood
Melamine
Melamine Particle Board
MDF/HDF
Oriented Strand Board (OSB)*
Particle Boar
Softwood/Hardwood
Veneered Plywood

*Oriented Strand Board is an engineered wood particle board.

Recommended RPM 20,000-21,000.

Tool Data Downloads

46170 Vectric Compatible Tool File
The 46170 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
Installation:
1. Download to a safe location such as your desktop.
2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
