Overview
The 3.0HP SawStop® 10" Professional Cabinet Saw provides superior performance to meet the demands of discerning craftsmen and woodworkers. With SawStop®'s legendary safety system, groundbreaking 99% dust collection and peerless fit and finish it's ready to help you get the job done.
Features:
- Deluxe T-Glide Fence System
- 220V, 3.0HP model is engineered for the avid hobbyist and discerning professional
- Safety System - Automatically stops and retracts the blade on contact with skin
- A diagnostic self-check runs when you start the saw to ensure all systems are ready to detect an accident. If any problem is detected, the system will not allow the saw to start.
- Tool-Free Quick-Change Blade Guard - Mount Make fast and easy transitions between blade guard and riving knife with no tools required
- Features a quick-release mechanism for tool-free access to the saw cavity
- 99% Efficient Dust Collection - Advanced control of over-and-under table airflow captures dust at the blade and directs it out of the saw
- Fence and Rails Infinitely adjustable - T-Glide rail system and widely spaced glide plates provide smooth travel along the length of the table
- Dust Collection Blade Guard (included with the 3.0HP model, optional for the 1.75HP model). This innovative blade guard collects above-table dust and features independent lateral sides to minimize exposure to the blade. It retains a low profile to allow for cuts as narrow as 3/4 of an inch.
- Riving knife minimizes kickback and provides protection during non-through cuts.
- Fit and Finish - Attention to detail, premium craftsmanship and rigorous engineering combine to create a saw you'll love to use
- Precision Alignment System - Adjust the blade and table alignment with precision not found on other saws
- When the power goes out, the saw stays off. The safety system won't allow the motor to restart automatically when the power comes back on.
- Left-tilting blade helps prevent wood from binding against the fence.
SawStop®, the SawStop® blade logo, and the configurations of SawStop® products are either registered trademarks or trademarks of SawStop®, LLC and are used with permission.
Specifications
| 3.0HP 230V |
|
| Overall saw dimensions: |
69 1/8" w x 33" d x 34" h |
| Motor: |
3HP, 230V, 13A, 60Hz, 1- phase |
| Shipping weight (approx.) |
505 lbs. |
| Max. rip, right of blade: |
36" |
| Cabinet footprint: |
19 3/8" w x 19 3/8" d |
| Cast iron table: |
20" w x 27" d, 44" w x 27" d (w/ extension wings) |
| Extension wing: |
12" w x 27" d |
| Blade: |
40-tooth, professional-grade, 5/8" arbor |
| Blade diameter: |
10" |
| Blade tilt: |
Left |
| Blade kerf: |
0.118" (3mm) |
| Blade plate thickness: |
0.078" (2mm) |
| Max. depth of cut, blade at 0°: |
3 1/8" |
| Max. depth of cut, blade at 45°: |
2 1/4" |
| Max. rip, left of blade: |
12" |
| Dado diameter: |
8" (requires a separate brake cartridge and table insert) |
| Dado max. width: |
13/16" |
| Arbor diameter at blade: |
5/8" |
| Main bearing size: |
62mm OD x 30mm ID |
| Second bearing size: |
52mm OD x 25mm ID |
| Table in front of blade (max. elevation): |
10 1/4" |
| Table behind blade (max. elevation): |
7 1/2" |
| Arbor runout: |
0.001" Maximum allowable runout |
| Blade lateral movement over full elevation range: |
0.006" Maximum |
| Table flatness measured diagonally: |
0.010" Maximum gap |
| Overall table and extension wing flatness: |
0.025" Maximum gap |
| Blade alignment with miter slot: |
0.010" Maximum displacement |
| Deviation of miter gauge indexing stops from actual: |
±0.25° |
| Alignment between spreader and blade: |
0.010" Maximum difference |
| Miter slots: |
T-shaped, 3/4" at top, 1" at bottom, 3/8" deep |
| Dust collection port diameter: |
4" |
| Riving knife/splitter thickness: |
0.078" (2mm) |
| Blade guard: |
polycarbonate extends only 5/8" to the right of the blade |
| Insert: |
zero clearance, steel core, ABS surfaces |

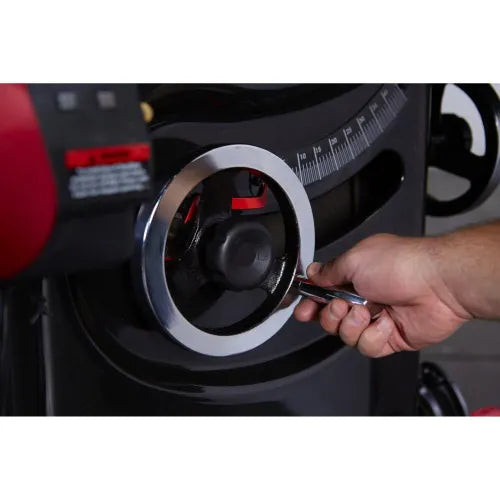

| Handwheels: |
7" diameter, cast iron with chrome handle |
| Belts: |
2 V-ribbed belts - arbor belt is static dissipative |
