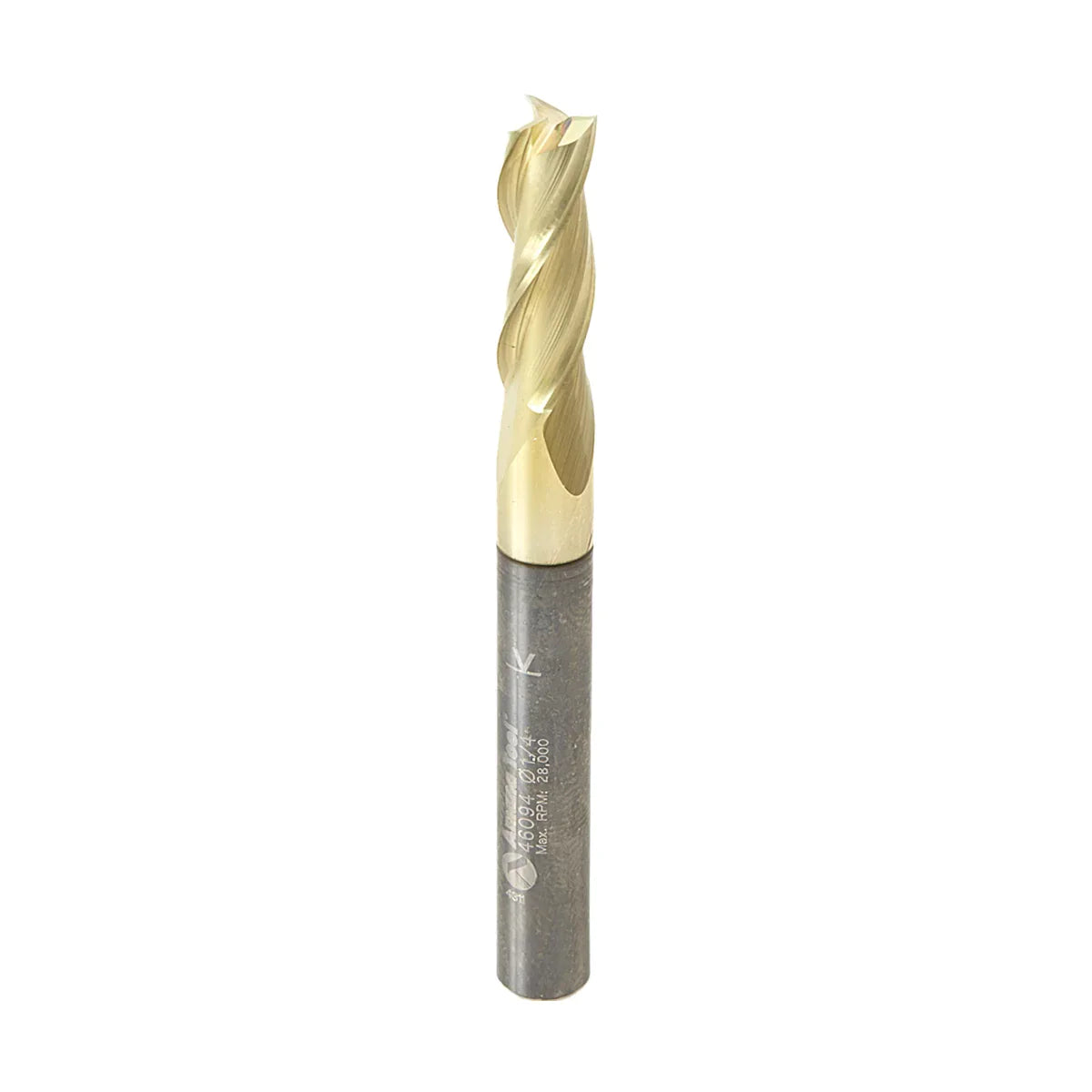

Solid Carbide Up-Cut Spiral 1/4 Diameter x 3/4 x 1/4 Shank x 2-1/2 Inch Long Router Bit

• Plastic
• Acrylic Stone
• Aluminum
• Acrylonitrile-Butadiene-Styrene (ABS)
• Carbon Fiber Reinforced Polymer (CFRP)
• Composite
• Corian
• Coroplast®*
• Fiberglass
• Fiberglass PCB Board
• HDPE
• High Impact Polystyrene (HIPS)
• Low Density Polyethylene (LDPE)
• Phenolics
• Poly (methyl methacrylate) (PMMA)
• Polycarbonate (Lexan™)†
• Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
• Thermoplastic Polyolefin (TPO)

*A soft plastic cardboard made with super soft super flexible PVC.

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Benefits of ZrN Coating

• Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
• High resistance to wear
• Extended tool life
• Less friction & heat buildup
• High resistance to wear

Tool Data Downloads

Tool #496094 Vectric Compatible Tool File
The 46094 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
Installation:
1. Download to a safe location such as your desktop.
2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
